Vertical Lift Module (VLM)
Vertical Lift Module & Enclosed Storage
Increase storage capacity with a compact footprint
Taking the pallet as the storage unit, through the lifting and horizontal movement of the pallet truck, the pallet of stored goods is taken out or
sent to the appropriate cargo position in the cabinet. Absolute authentication is adopted in the lifting and lowering movement, with high precision and accurate authentication.
Horizontal movement adopts induction control, and when it has reached the storage, there is an automatic height measuring device at the entrance to detect the stored
The height of goods, automatic and reasonable arrangement of storage space in the cabinet. Realize intelligent management, “goods to people”.
It has manual, stand-alone automatic and on-line automatic operation modes. The management and monitoring system can be connected with ERP and MES.
Operate on a “goods-to-person” basis, increasing productivity by delivering goods directly to operators. These systems are modular and designed to be flexible, allowing them to be adapted to your business needs in the future.
Why Choose Vertical Lift Module (VLM)

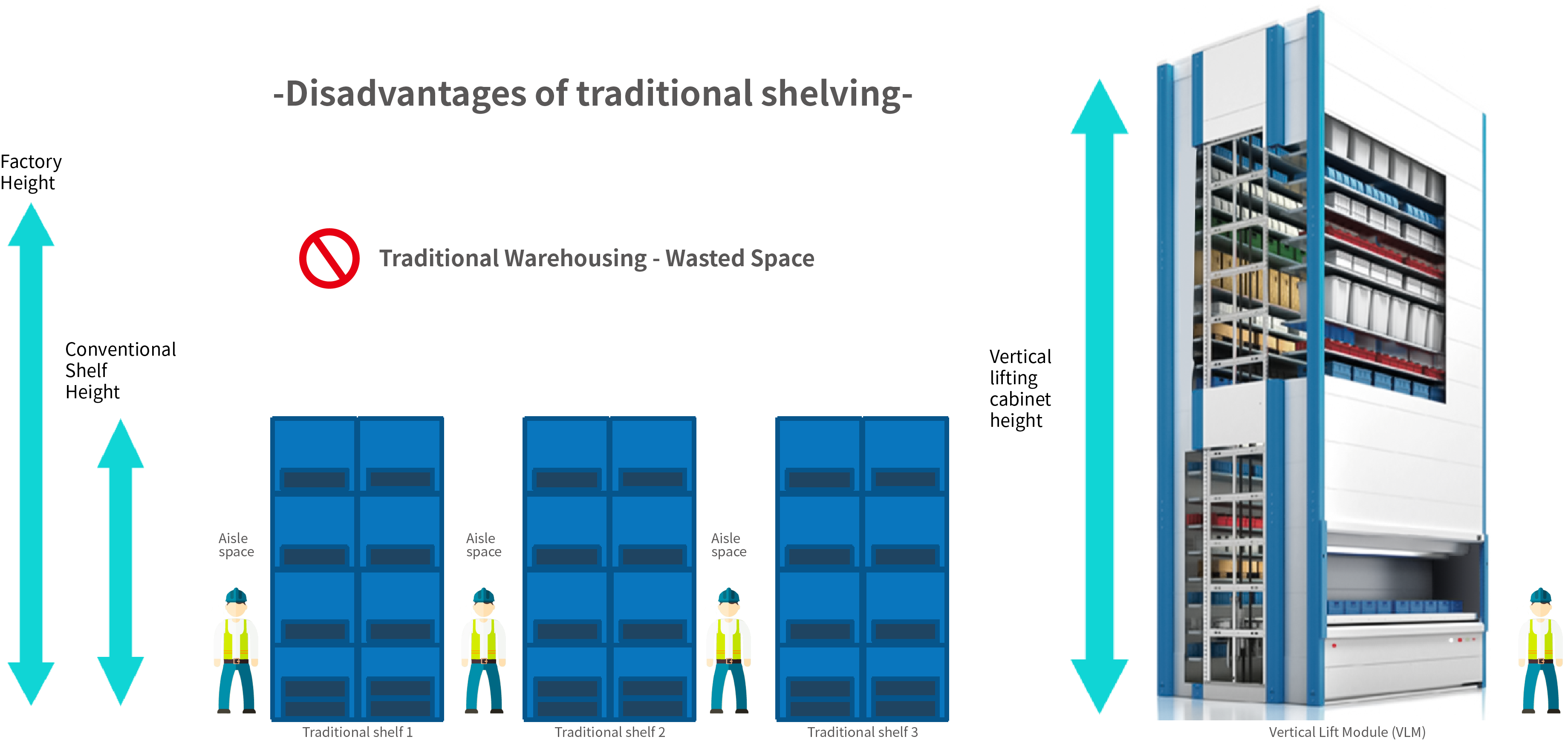

For storing items of widely varying sizes and irregular shapes, there is almost perfect spatial flexibility as well as a maximized height of use up to the top of the house.
With a height of 100 mm per fixed unit, the machine can be flexibly adapted to the height of various plants and warehouses as required. In case of a change of warehouse or plant, the unit can be moved to the new location together with the other equipment, and the optimal height can be adjusted easily by adding or subtracting modular units.

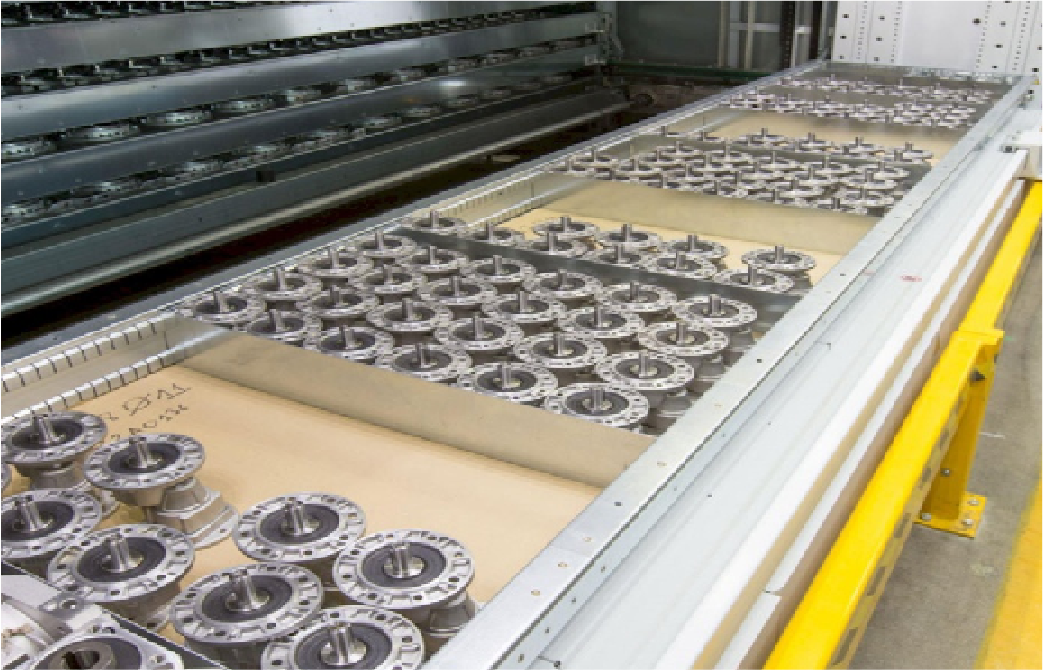

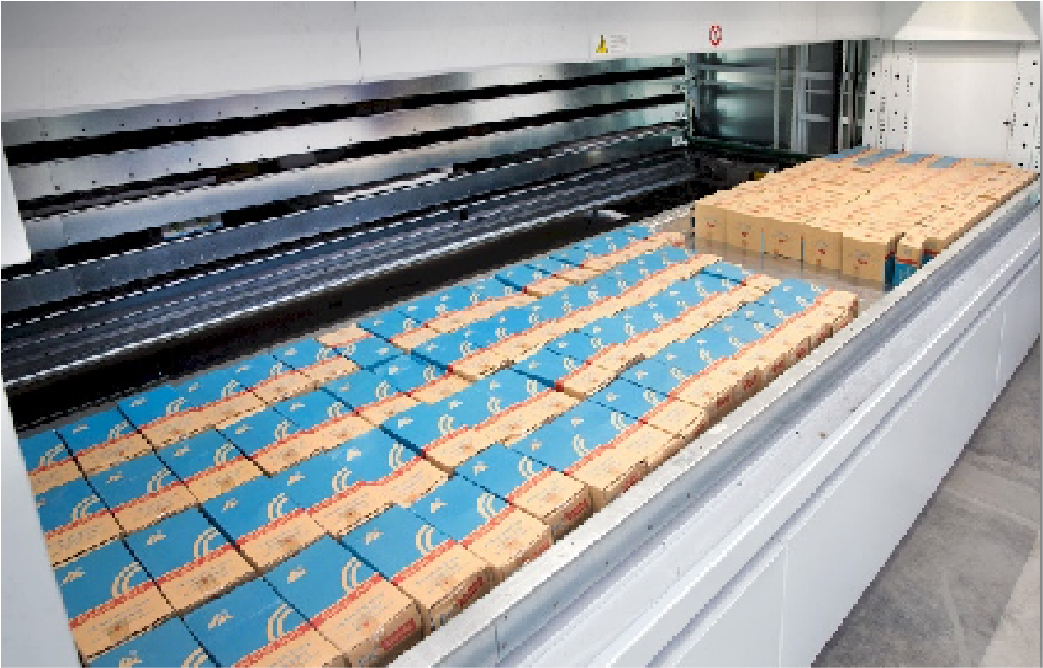

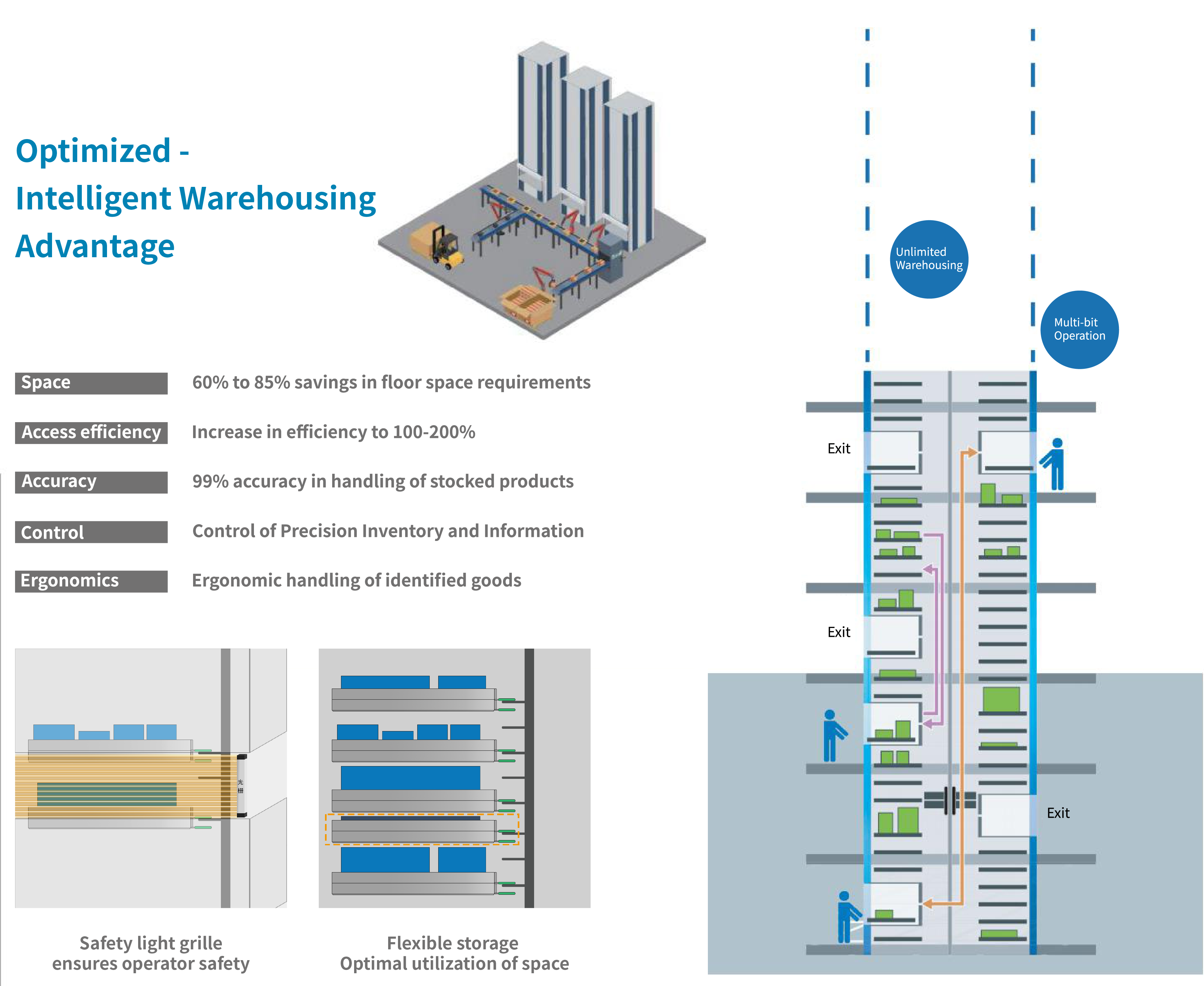

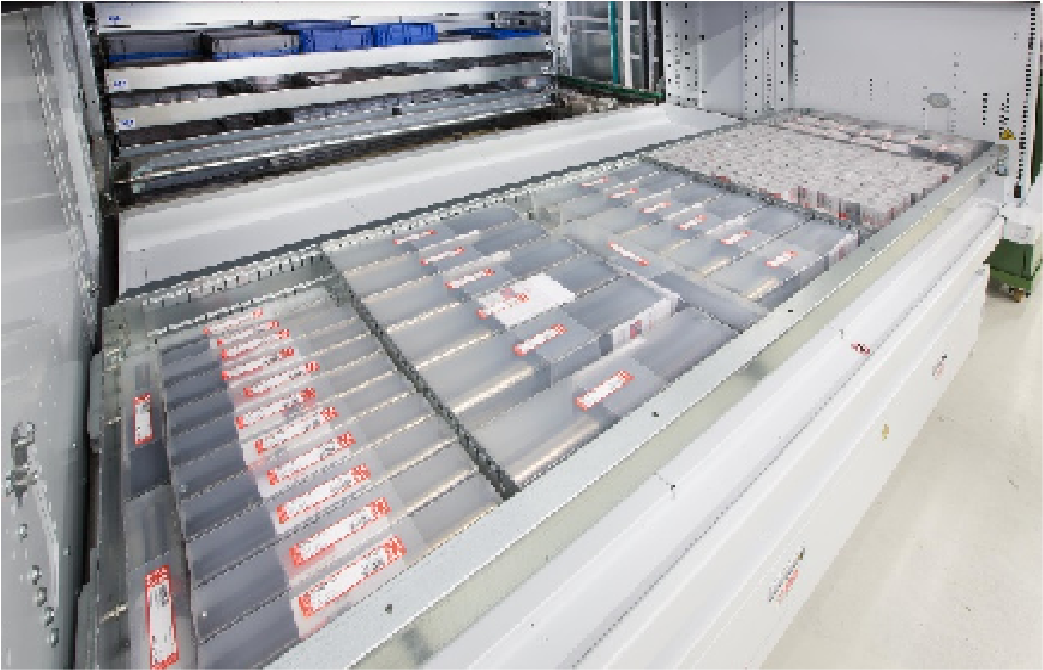

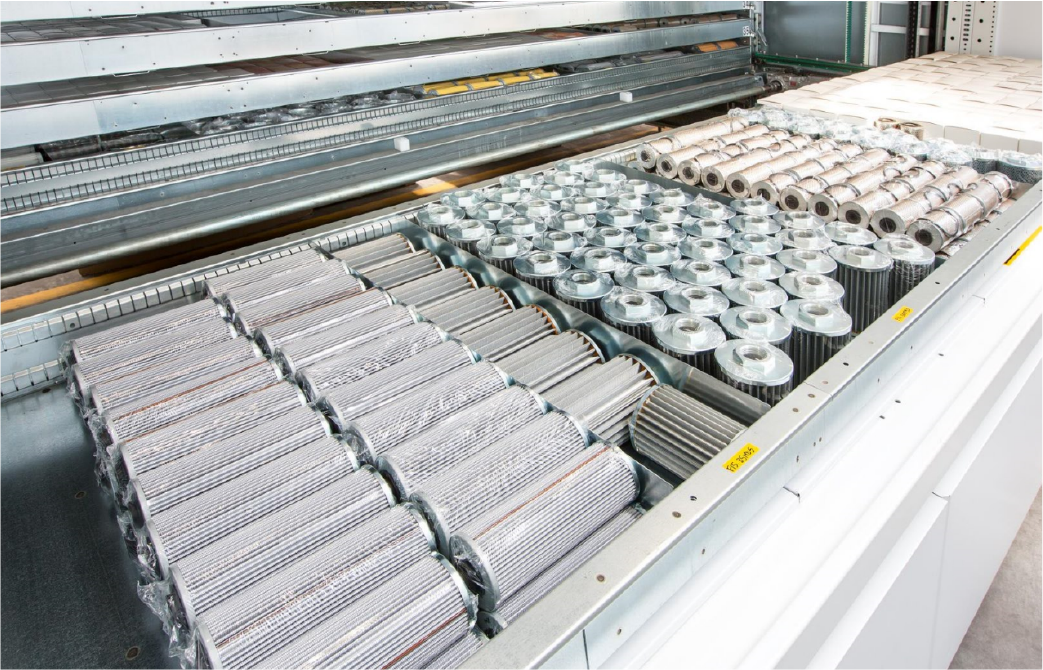

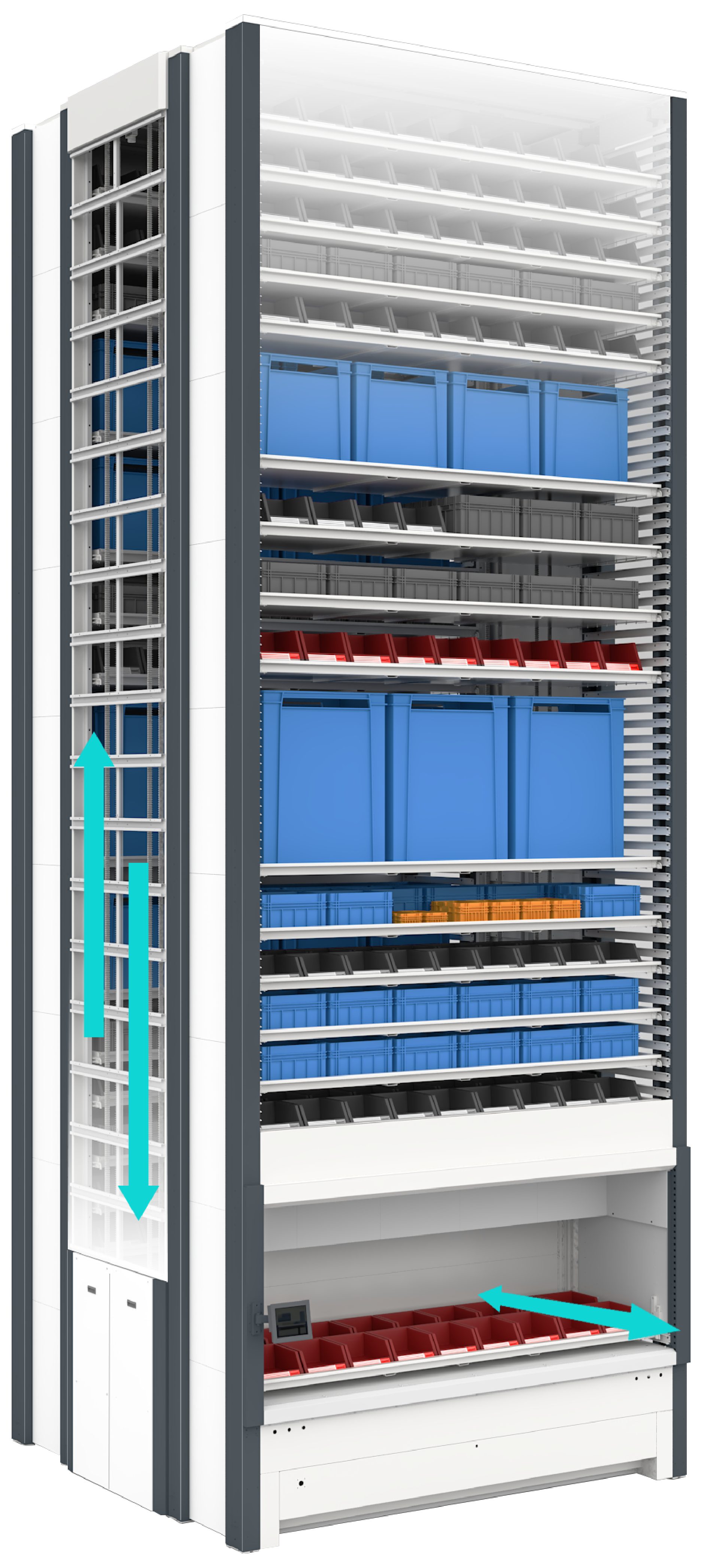

The basic modular unit consists of pallets stored vertically on both sides of the module, and an access device in the center of the module. During each task, the vertically elevated pallets can automatically place the stored goods in the desired window or the corresponding level according to manual settings or barcode scanning.
Compared to vertical swing cabinets, lift cabinets are more suitable for items with large size differences and irregular shapes.

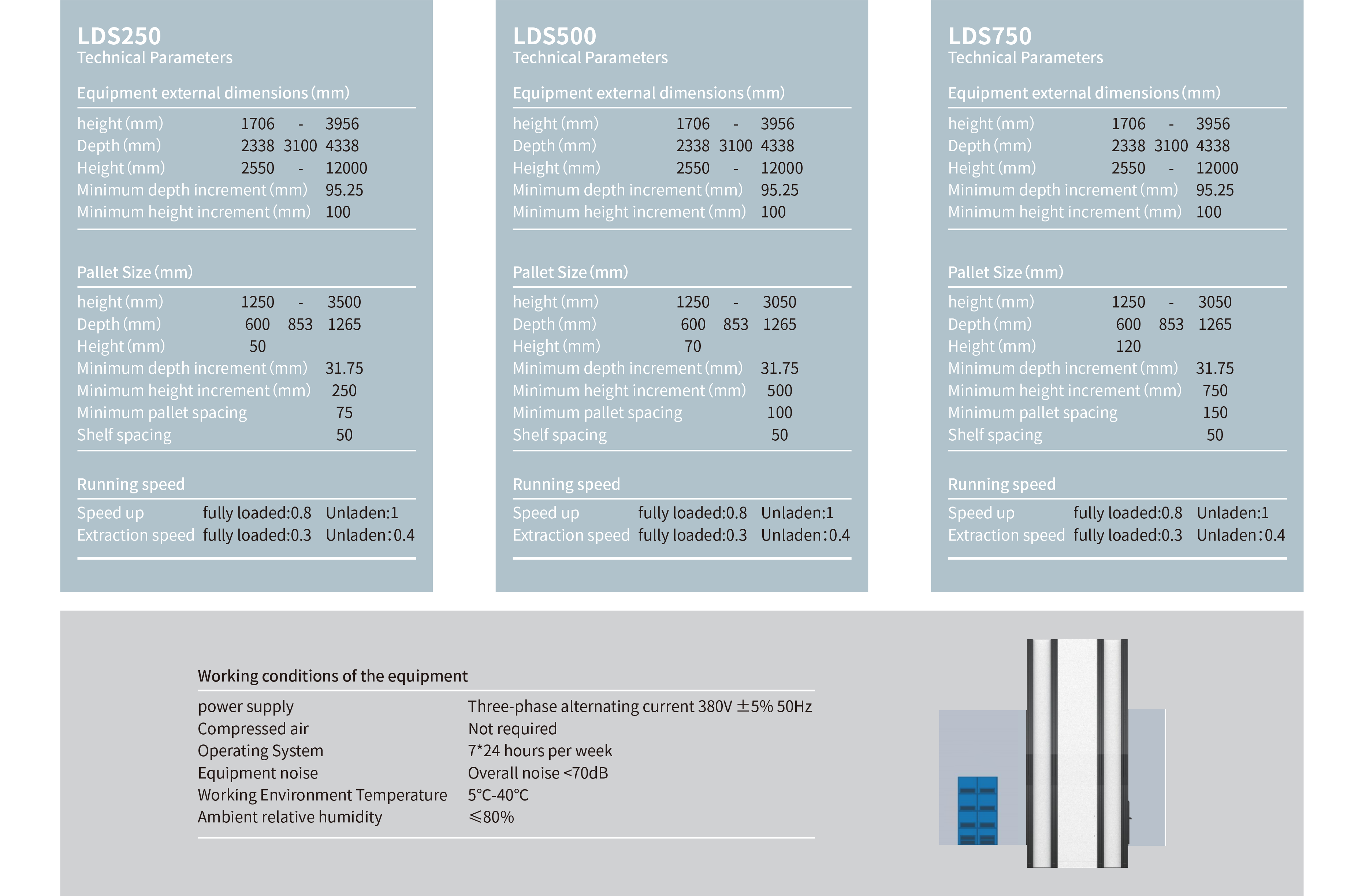

Vertical Lift Module (VLM) parameter reference

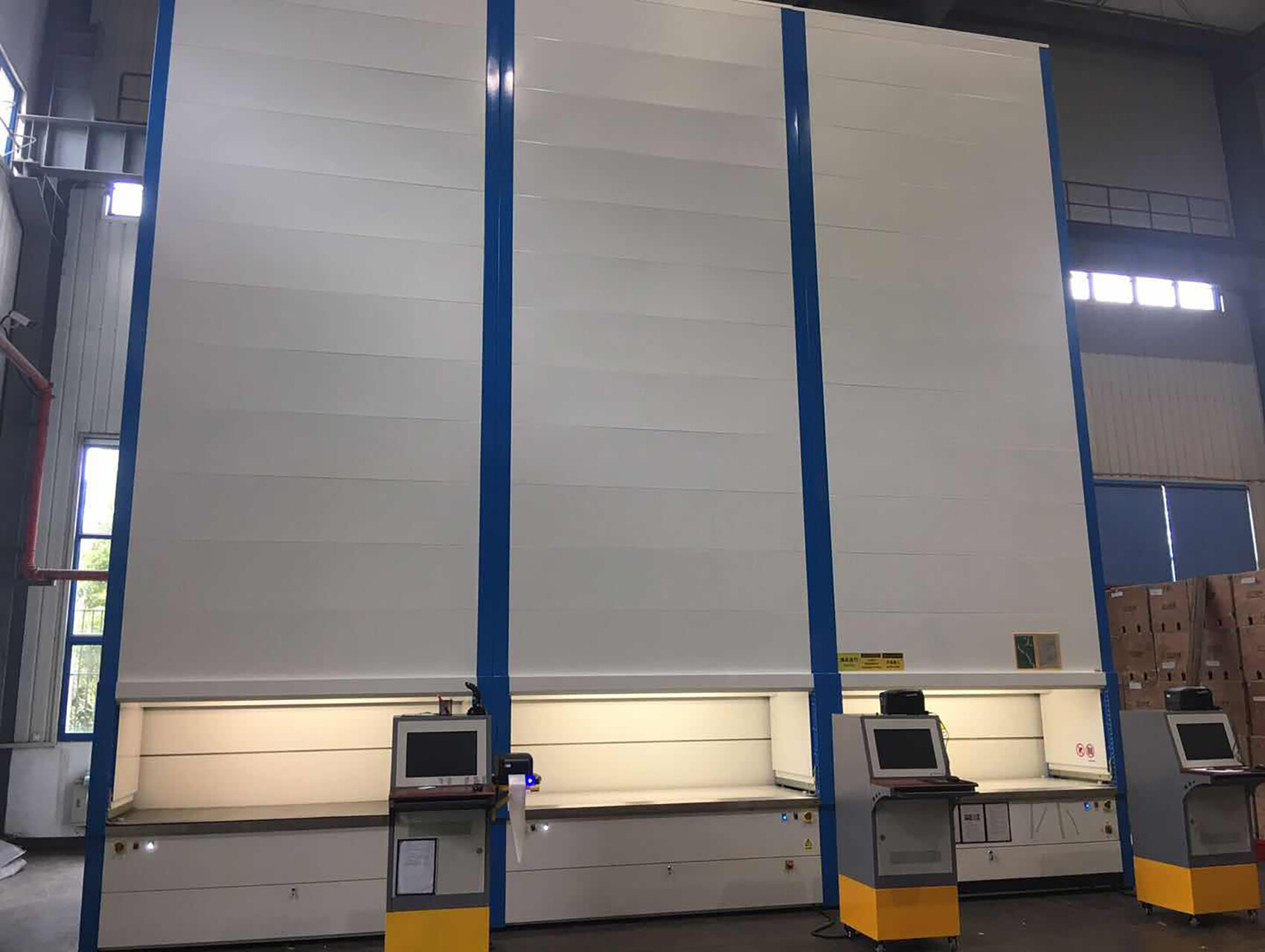

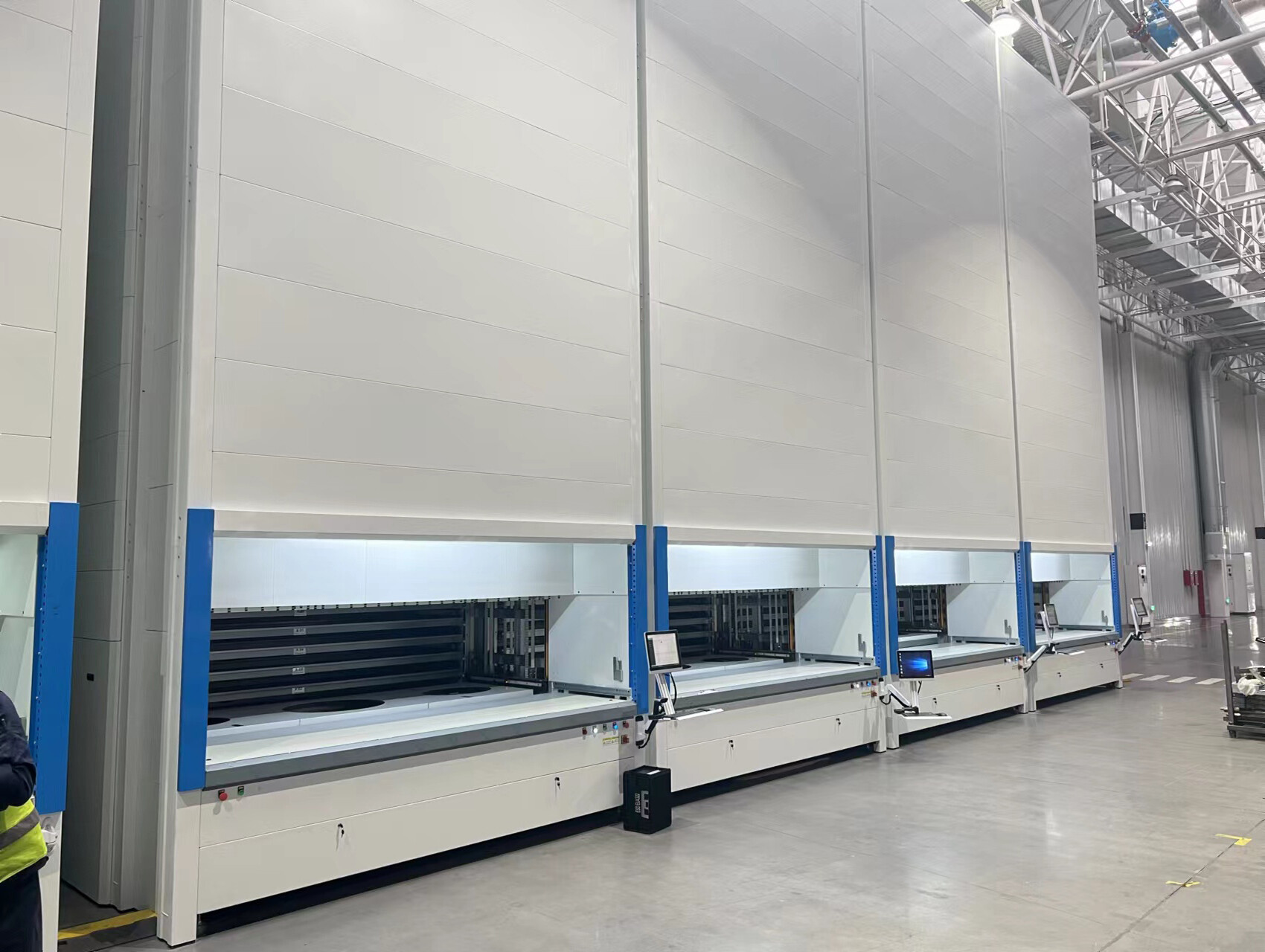

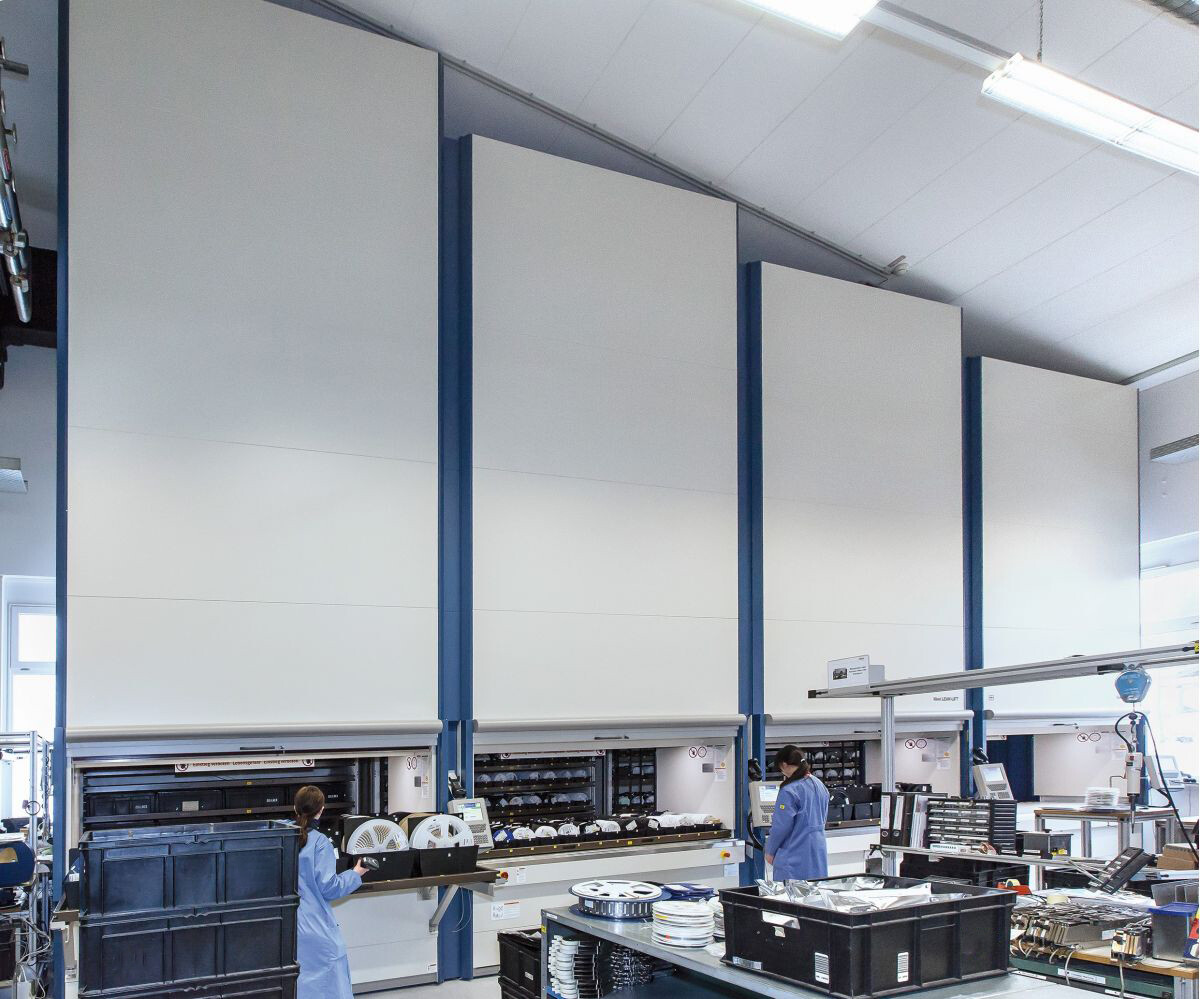

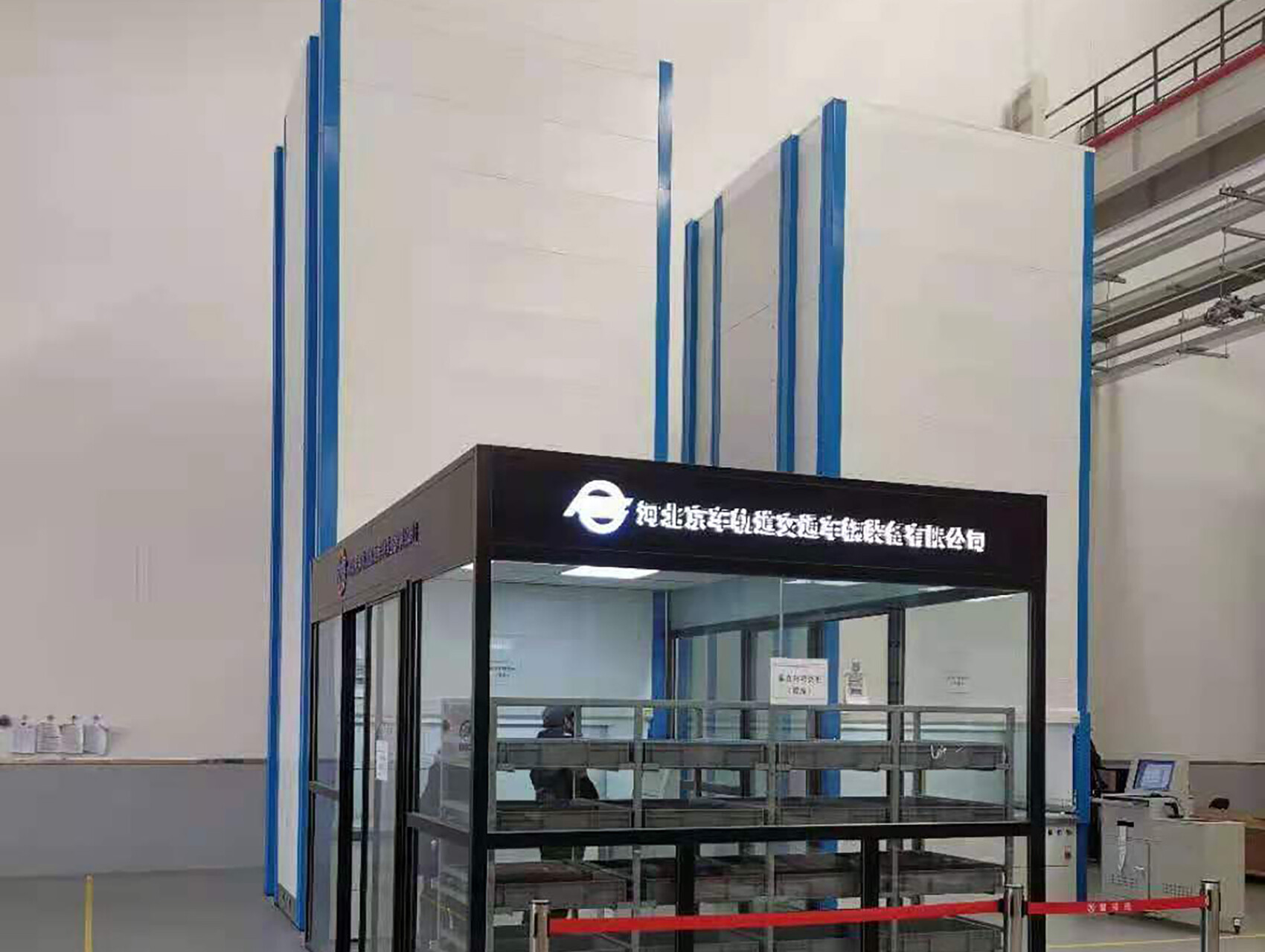

Vertical Lift Module (VLM)-Cases
